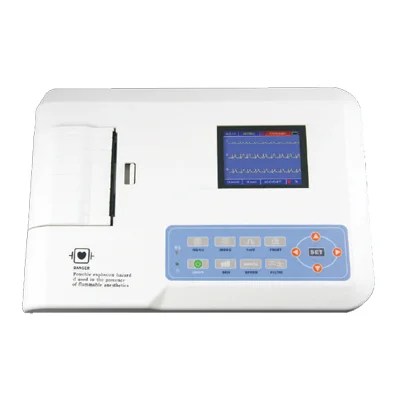

Features & Benefits AC/DC Operated 3 channel ECG with Interpretation Rechargeable Lithium Battery Battery backup : Approx.1.5 hours(with continuous printing) Simultaneous display 3/6/12 leads ECG waveform and can remark the lead sign, sensitivity paper speed and filter state Data interpretation It can store more than 1000 patient’s data (Cases), more convenient for data review & statistics Portable, Light weight and sturdy design Mode of printing : Automatic/Manual Printing Modes 4*3 Auto 3*4 1 Auto 3*4 Auto 2*6 1 Auto 2*6 Auto 3-2 1 Auto 3-2 Rhythm 4 Rhythm 3 Rhythm 2 Manual Mode Measurement parameter : HR, P-R interval P Duration, QRS Duration, Q Interval, Q-Tc, P Axis, QRS Axis, T Axis, R (V5), S(V1), R(V5) S(V1) Recording : Auto and Manual Optional Touch Screen Basic Software : For data transfer & Print Advance Software : For cardiac analysis Specifications LCD Display 3.5″ Power Supply AC : 100~240V, 50/60 Hz DC : 7.4V, 3700 mAh rechargeable lithium battery Input way Floating and defibrillation protection Lead 12 leads Patient leak current ≤10μA Frequency response .05Hz~150Hz (-3 dB~0.4 dB) Time Constant Time ≥3.2s CMRR ≤60 dB, ≤100 dB (add filter) EMG interference filter 35 Hz (-3dB) AC Filter 50/60HZ Sampling Rate 1000HZ Recording Way Thermal printing system Recording papers 80mm (W) x 20 m (L) Paper Speed Auto record : 25mm/s, 50mm/s Manual record : 5, 10, 25, 50mm/s Rhythm record : 25mm/s, 50mm/s Classification Class I, CF applied part Enduring polarization voltage ±500mV Sensitivity choice 5, 10, 20 mm/mV (Error : ±5%) Standard sensitivity 10mm/mV ±0.2% Auto Interpretation Recording Auto and Manual Fuse Specification 2pcs (5*20mm AC time lags); T1.6AL250V (Power Supply : 220V) Machine Size 315 (L) x 215 (W) x 77 (H) mm Machine Net Weight 1.7Kg For more details contact us at 91-829-812-7070
